27 Jun The Importance of Post-Tension Repairs in Concrete Restoration

Over time, concrete breaks and it cracks – creating spalling and deterioration in a building. Post-Tension repairs also known as PT – are very important repairs to be addressed as soon as possible. When they break down or become damaged, it’s important to address the issues to protect the building’s structural integrity, ensure safety, and further extend the lifespan of the building.

What is Post-Tensioning exactly?

Post-tensioning applies to tensioning the steel in a concrete slab such a balcony or sidewalk and placing the steel tendons into the concrete after the concrete has been poured and cured. This process reduces cracking and supports heavier loads while using less concrete.

Imagine stretching a rubber band. As you pull on it, you create tension. When you release it, that stored force causes it to contract. Steel tendons behave similarly. When the steel is stretched, it is placed in tension. After it is released, the tension in the steel transfers to the surrounding concrete as compression. This pre-compression helps offset future tensile forces that develop in the concrete, so that even when the concrete experiences tension under loading, the net force remains in compression, reducing the likelihood of cracking.

Post tension systems are commonly found in:

• High-rise condominium buildings
• Balconies
• Commercial buildings
• Parking Garages
• Pool Decks

These types of structures experience high tension and heavy loads & foot traffic – making post tension cables incredibly useful for their demands.

Why is Post-Tension important?



Protecting the Structural Integrity

The main reason for a post-tension system is to reinforce the concrete and redistribute the heavy loads on it. If a tendon rusts or corrodes, or even breaks, the concrete can experience significant stress leading to cracking and spalling.

Proper maintenance and routine checkups on your building is crucial to prevent any concrete failures.

The Cost of Repairs

It is significantly more cost effective to proactively repair any post-tension cables or concrete structures than it is to apply emergency repairs. The last thing you would want as a property manager, owner, or resident is to compromise the structural integrity and safety of your building. Failure to address repairs can also lead to red-tag violations and code violations as well.

Most cracks in concrete typically happen over a long period of time. The cracks will start small; however, if they are not addressed they continue to grow and become worse. As you can suspect, the larger the cracks, the more costly the repairs.

By addressing repairs in a timely manner, property owners can avoid:

• Emergency repairs
• Concrete spalling
• Tendon cables snapping or breaking
• Increased maintenance costs
• Operational disruptions
• Premature replacement of structural components



What causes post-tension stress?

Post tension stress can occur from a number of factors; however, the most common are:

• Water intrusion
• Erosion and corrosion such as salt in the air
• Concrete cracking
• Not waterproofing regularly
• Not pressure washing regularly
• Aging materials or concrete



Post Tension Repair Process

Every process is unique but most repairs require the same steps:

Inspection

We will typically utilize Ground-Penetrating Radar or electromagnetic sensors to locate the active tendons inside of the concrete. We want to do this to ensure we don’t compromise the concrete slab nor can any hazardous recoil.

Concrete Removal

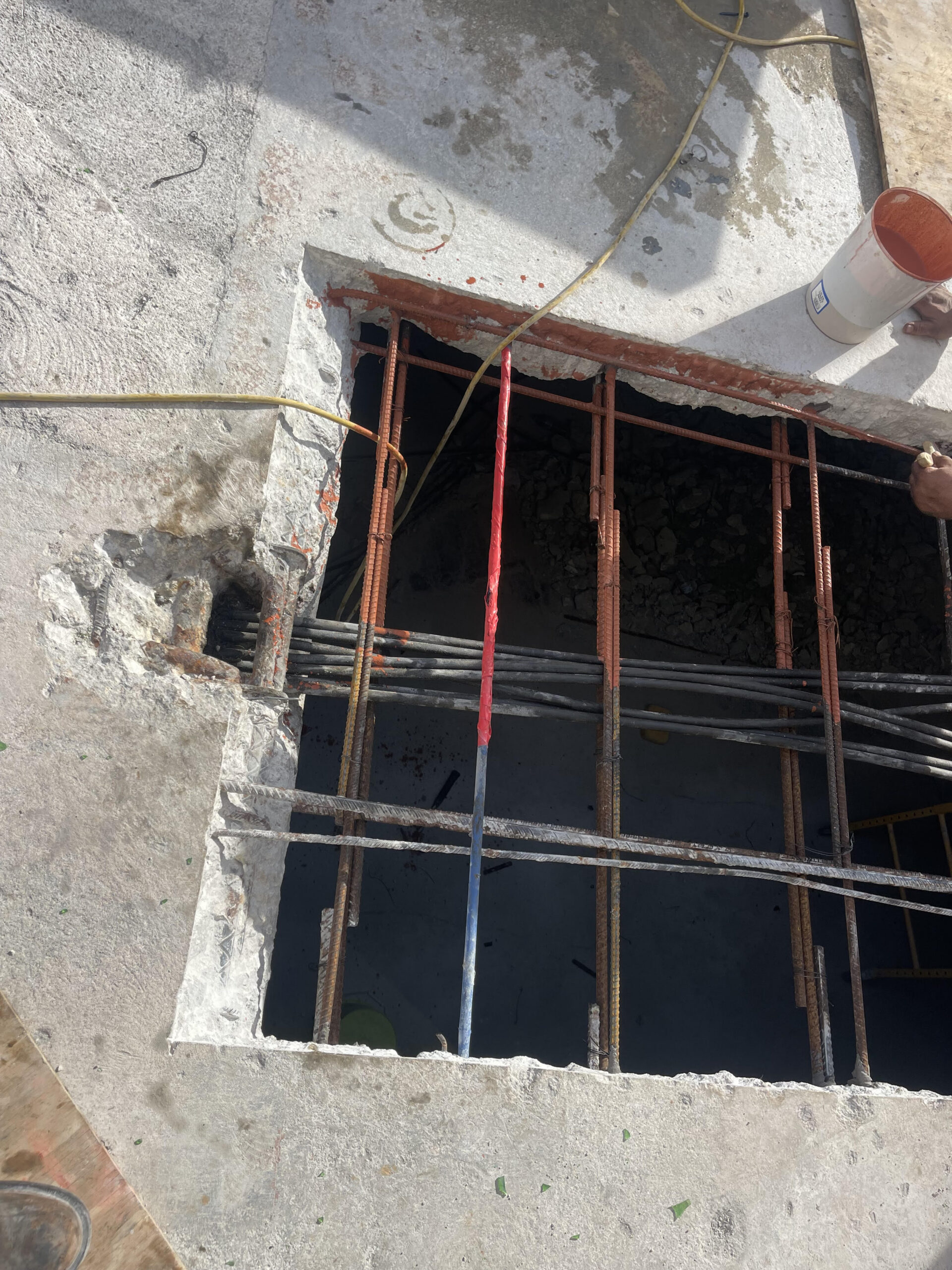

After we have located our tendon cables, damaged concrete is carefully removed to expose the affected post-tension components. Any damaged portion of the tendons will be cut & removed and a new post tension cable is connected; this process is also called tendon splicing.

Post Tension Process

The process consists of removing the tendon and measuring its length to locate the damaged section. Determine the required concrete saw-cut location to expose the tendon. Excavate the area, remove the damaged tendon, splice in a new tendon section, replace the anchorage components, and re-stress the tendon per project specifications.

So, let’s look at our steps again:

• Inspect the damage and find which tendons are damaged
• Expose the tendon by removing the surrounding concrete
• Determine if the tendon needs to be replaced; if part of the cable tendon broke off, then, it’ll need to be replaced
• Detension the cable safely if required.
• Install a splice or replace the damaged tendon.
• Restress the tendon to the specified force using hydraulic equipment.
• Restore corrosion protection and patch the concrete.
• Perform a final inspection to verify the repair.



Because post-tension tendons are under very high tension, repairs should only be performed by qualified post-tension specialists under the supervision of a structural engineer.

Choosing the contractor for post tension repairs

Post-tension is a highly technical and specialized field within the construction industry. It is a service that requires high expertise, proper equipment, and strong safety skills to ensure the repair is made properly. When looking for a contractor who can make post-tension repairs, you should look for one with experience in:

• Concrete restoration
• Post Tension Institute(PTI) Certified
• Years of experience handling post-tension systems



Final Thoughts

Post-tension systems play an important role in the concrete restoration industry. When a post-tension system becomes damaged, repairs are essential to maintaining structural integrity and building safety.

If you’re a property manager or owner of a commercial building, condominium, or parking garage, investing in professional post-tension repairs is one of the most effective ways to preserve the long-term value and safety of your concrete structure. Routine inspections, proactive maintenance, and expert restoration services can help ensure your building continues to perform reliably for years to come.
